Exploring RDS’s ARM-Based Embedded Solutions:

Compact Power, Versatility, and Tailored Integration

In the realm of embedded computing, ARM-based solutions deliver an unbeatable blend of energy efficiency, compact design, and scalable performance, making them indispensable for modern IoT, industrial automation, and human-machine interface (HMI) applications.

We curate and customise a robust portfolio of ARM-powered single-board computers (SBCs), system-on-modules (SOMs), and integrated HMI boards.

Drawing from partnerships with innovators such as Kontron, AAEON, Rockchip, NXP, MediaTek, Qualcomm, TI, ST micro, and Espressif, we enable engineers to deploy reliable, low-power systems across medical devices, digital signage, smart buildings, robotics, and edge AI.

Whether prototyping a sensor gateway or scaling to production-ready HMIs, our ARM solutions prioritise seamless integration, long-term availability, and bespoke adaptations.

Diverse Board Sizes, Form Factors, and Real-World Applications

Our ARM-based solutions offer exceptional flexibility across a wide range of sizes and form factors, from compact prototypes to robust industrial systems.

Key Form Factors

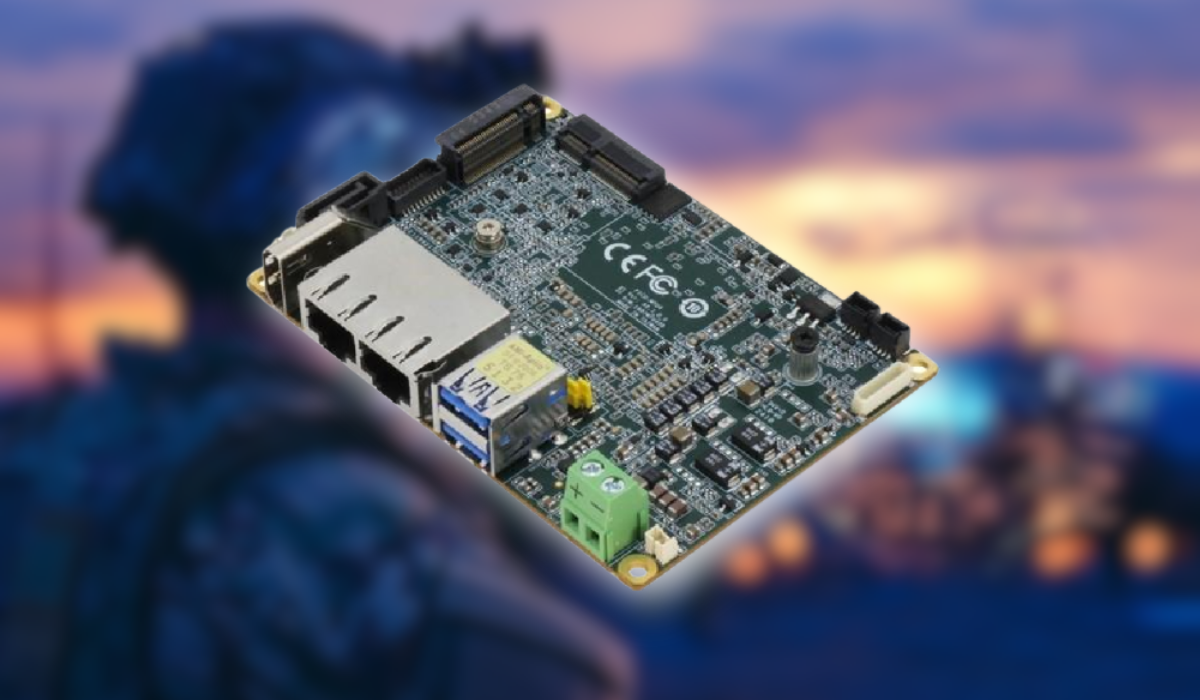

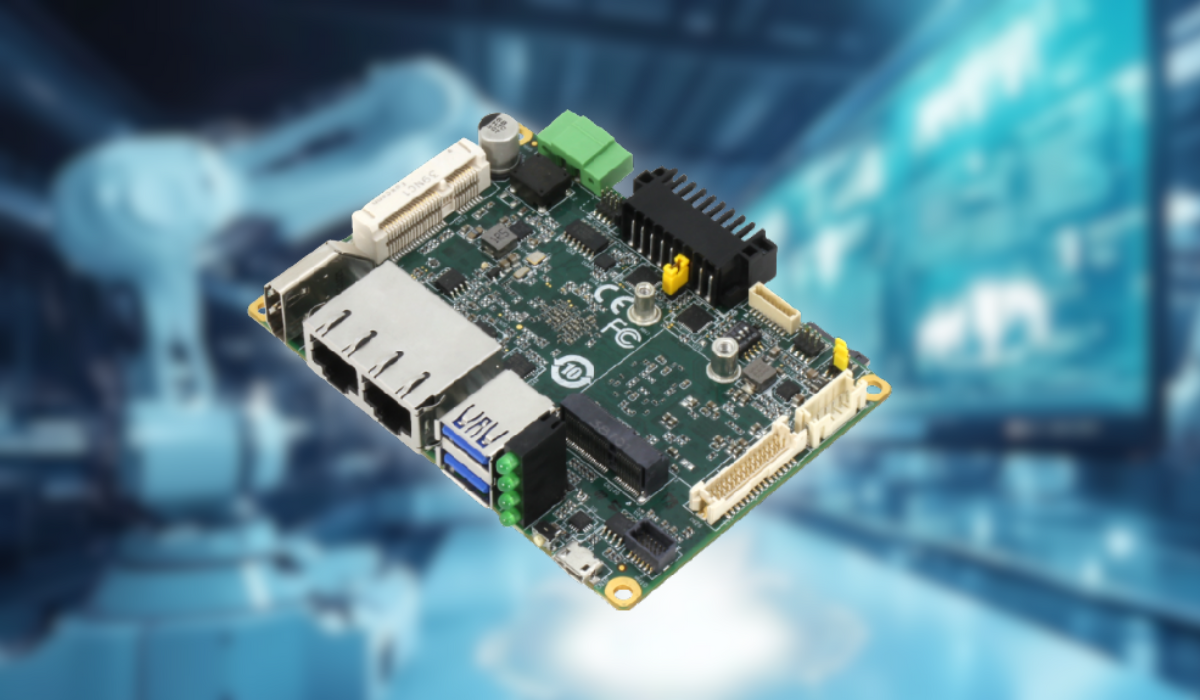

Compact Pico-ITX: 100 mm × 72 mm – ideal for portable medical devices and automotive dashboards.
Larger boards: e.g., Orion 3188 (160 mm × 110 mm) – suited to factory automation control panels.
Integrated HMI boards: ESP32 series with built-in 4.3", 5", or 7" TFT displays – compact all-in-one solutions.

Options include standalone SBCs and modular SOMs for diverse applications.

Application Highlights

PICO-ITX SBC: Industrial IoT gateways and smart building automation; wide temperature range (−40°C to +85°C).
RICO series: Digital signage, kiosks, and facial recognition with 4K video support.
7" ESP32 HMI: Glove-friendly touch for medical and rugged patient monitoring/diagnostics.

Our ARM solutions excel in low-latency, low-power scenarios like edge computing, machine vision, and energy-harvesting devices – delivering multi-year battery life at under 6 W.

Scalable Processing Power for Demanding Tasks

Our ARM lineup delivers scalable processing power, from lightweight microcontrollers to high-end multi-core SoCs, expertly balancing performance and efficiency.

Key Processor Options

Entry-level: ESP32-based HMI boards with dual-core 32-bit LX7 processors (up to 240 MHz) and integrated Wi-Fi/Bluetooth.
Mid-range: SoC RK3288 featuring quad-core ARM Cortex-A17 at 1.6 GHz (boosting to 1.8 GHz) – supports Android 6.0 for multimedia and light AI tasks in home automation or intelligent cameras.
Graphics-intensive/AI workloads: RK3568 with hexa-core (dual Cortex-A72 at 1.8 GHz + quad Cortex-A53) and Mali-T864 GPU – enables 4K UHD decoding and machine learning inference.
Edge AI and real-time processing: TI-AM62x with quad Cortex-A53 cores at 1.4 GHz, plus Cortex-M4F co-processor, 3D GPU, and dedicated NPU – suited to robotics or predictive maintenance.
Cost-effective video handling: RK3188, quad-core processor – provides reliable 1080p performance for budget-conscious embedded controls.

Across the range, some versions support Linux (Debian, Yocto), Android, and RTOS, with power consumption as low as 5mW at 12 V (deep sleep modes), making them suitable for fanless, thermally efficient designs.

Enhancing Performance with Add-Ons and Custom Integrations

We transform standard ARM boards into complete turnkey systems using in-house customisations and ISO-certified UK facilities for prototyping and production.

Key Enhancements

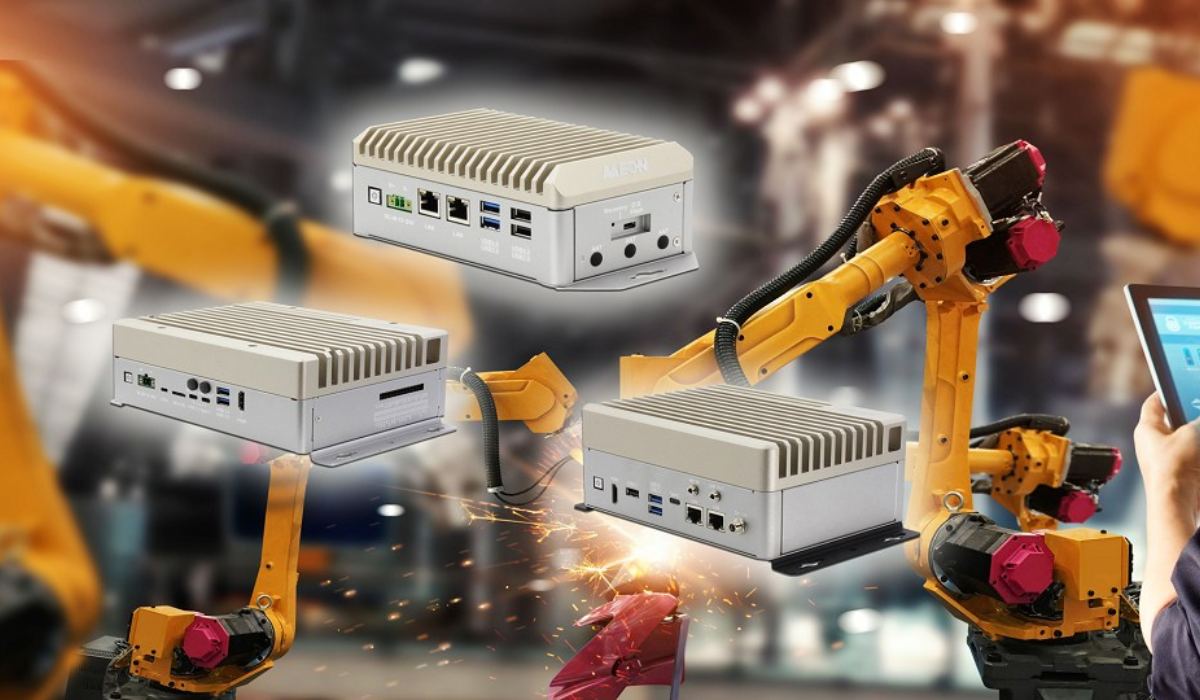

Thermal management: Bespoke aluminium heatsinks and metalwork (extrusions or CNC-machined) enable fanless operation across −40 °C to +85 °C.
Customisation options: PCB redesigns, tailored I/O configurations, software stacks, and full system enclosures.
Cabling: Custom harnesses with rugged connectors (e.g., M12 Ethernet, USB Type-C OTG) for vibration-resistant reliability.
Input solutions: Industrial keyboards as membrane or capacitive overlays; sealed IP67 designs with gloved operation and multi-language support.
Memory & storage: Up to 4 GB DDR3L/DDR4 RAM; 16–128 GB eMMC; MicroSD (up to 64 GB); M.2 NVMe SSD support for high-throughput tasks.
Additional features: TPM 2.0 security, CAN-FD buses, mini-PCIe for 4G/5G modules; full assembly, testing, and certification for faster time-to-market.

Powering Innovation with RDS ARM Solutions

Our ARM-based embedded solutions embody the perfect fusion of compact design, potent processing, and adaptable enhancements, empowering developers to tackle everything from energy-efficient sensors to immersive industrial HMIs.

With board sizes from pocketable Pico-ITX to display-integrated units, processing from 240 MHz dual-cores to 3.73 GHz hexa-cores, and comprehensive add-ons like custom heatsinks, cabling, keyboards, and expandable RAM/storage, we deliver not just hardware, but holistic systems ready for deployment. As edge computing evolves, we continue to innovate, offering end-to-end support that turns complex requirements into reliable realities.
