Enhancing Colour Gamut with Quantum Dot Films

Advancements in Display Technology: Enhancing Colour Gamut with Quantum Dot FilmsBy Daniel Burke, Marketing Manager @ RDSIn the ever-evolving world of display technologies, achieving vibrant and accurate colours remains a key challenge for manufacturers. At the core of this pursuit is the concept of colour space, which defines the range of colours a display can reproduce.

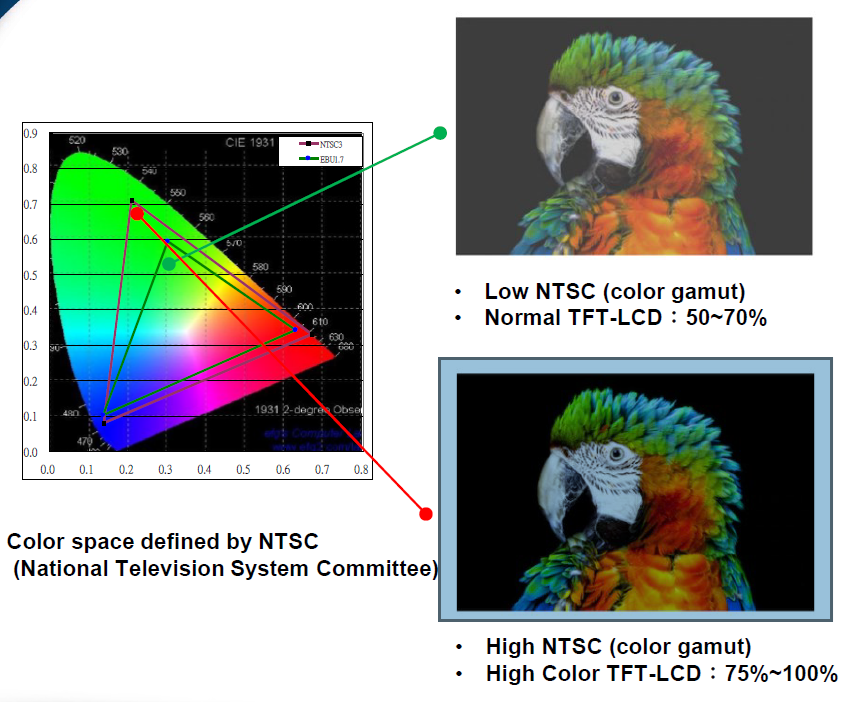

One of the foundational standards in this domain is the NTSC colour space, established by the National Television System Committee. This standard sets the benchmark for colour reproduction in electronic displays, influencing everything from televisions to computer monitors.

Traditional displays, such as standard TFT-LCD panels, typically achieve a colour gamut coverage of around 50% to 70% of the NTSC space. This level, often referred to as low NTSC gamut, is sufficient for everyday applications but falls short in scenarios demanding high-fidelity visuals, like professional graphic design, medical imaging, or high-end entertainment systems. To address these limitations, advanced high-colour TFT-LCDs have been developed, pushing the gamut coverage to 75% to 100% of NTSC. These improvements allow for richer, more lifelike colours that better mimic real-world hues.

A significant leap forward in this area comes from innovative backlight solutions. Conventional backlights have long been the backbone of LCD displays, but they often struggle to deliver the broad spectrum needed for superior colour performance. Enter a cutting-edge approach: colour enhancement through backlights integrated with Quantum Dot (QD) films. This new technology represents a paradigm shift, enabling displays to achieve higher colour purity and brightness without compromising efficiency.

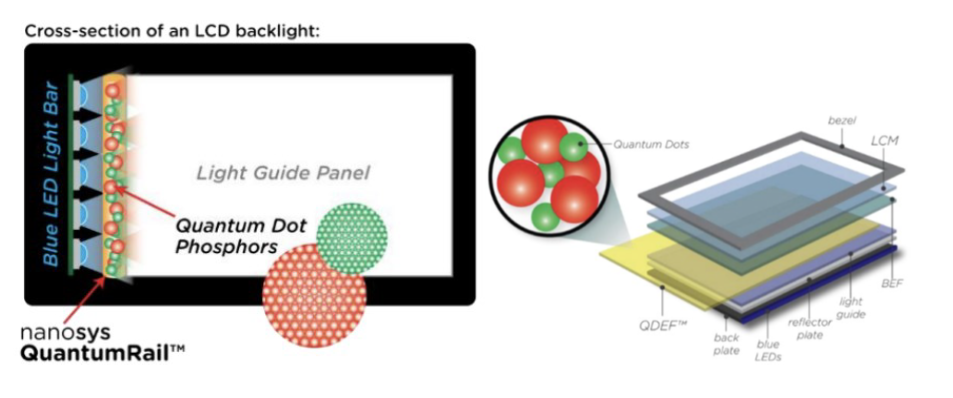

Quantum Dot films work by converting blue light from the LED backlight into precise red and green wavelengths, expanding the overall colour spectrum. When applied to general backlights, QD films can dramatically boost the colour gamut, making it possible for even standard panels to approach or exceed high NTSC levels. This not only enhances visual quality but also opens doors for applications in augmented reality, automotive dashboards, and outdoor signage, where environmental factors like extreme temperatures and vibrations demand robust performance.

The integration of QD films is particularly noteworthy in the context of colour space comparisons. For instance, while NTSC defines a wide gamut, other standards like those from the European Broadcasting Union (EBU) offer alternative references, often visualized on chromaticity diagrams spanning coordinates from 0.0 to 0.9. By overlaying these spaces, engineers can pinpoint areas for improvement, and QD-enhanced backlights excel in filling those gaps.

As display demands continue to grow with the rise of 4K, 8K, and beyond, technologies like QD film backlights are poised to become industry staples. They promise not just better colours but also energy savings and longer lifespans, making them a win-win for consumers and manufacturers alike. For those in the electronics field, keeping an eye on these developments could unlock new possibilities in product design and innovation.
